Hot rolled steel beam h beam A992/A36/A572 Gr50 Q235B SM490 q235 IPE 300 350 400 450 9.54/17.2/29.7kg/m Structural Iron

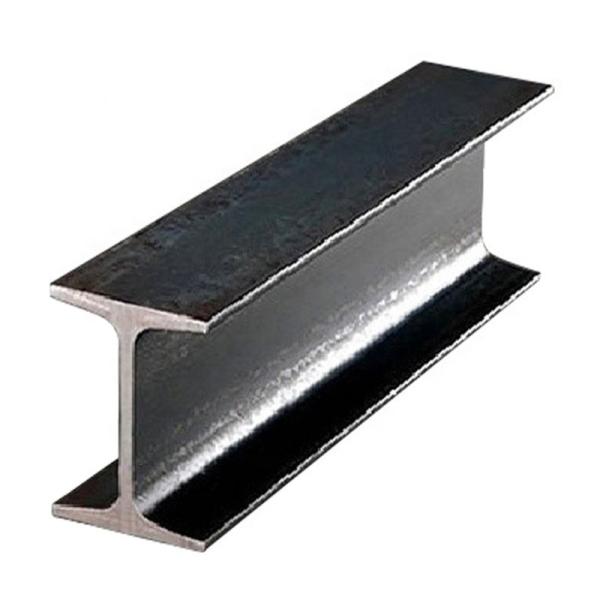

H BEAM Steel Universal Beam

H-shaped steel is an economical cross-section high-efficiency section with more optimized cross-sectional area distribution and a more reasonable strength-to-weight ratio. It is named because its cross-section is the same as the English letter "H". Since all parts of the H-shaped steel are arranged at right angles, the H-shaped steel has the advantages of strong bending resistance in all directions, simple construction, cost saving and light structural weight, and has been widely used.

H-shaped steel is a new type of economical construction steel. The section shape of H-shaped steel is economical and reasonable, and the mechanical properties are good. When rolling, the extension of each point on the section is relatively uniform and the internal stress is small. Compared with ordinary I-shaped steel, it has the advantages of large section modulus, light weight, and metal saving.

The structure is reduced by 30-40%; and because the inside and outside of the legs are parallel, and the legs are at right angles, they can be assembled and combined into components, which can save welding and riveting workload by up to 25%. It is often used in large buildings (such as factories, high-rise buildings, etc.) that require large bearing capacity and good section stability, as well as bridges, ships, lifting and transportation machinery, equipment foundations, brackets, foundation piles, etc.

H-shaped steel is divided into hot-rolled H-shaped steel and welded H-shaped steel (H), and hot-rolled H-shaped steel is divided into wide-flange H-shaped steel (HW), medium-flange H-shaped steel (HM) and narrow-flange H-shaped steel (HN). three kinds. HW means that the height of the H-shaped steel and the width of the flange are basically equal; it is mainly used for the steel core column in the reinforced concrete frame structure column, also known as the stiff steel column; it is mainly used for the column in the steel structure HM is the ratio of the height of the H-shaped steel to the width of the flange, which is roughly 1.33~~1.75. It is mainly used in steel structures: used as steel frame columns and used as frame beams in frame structures bearing dynamic loads; for example: equipment platforms HN is the ratio of H-shaped steel height to flange width greater than or equal to 2, mainly used for beams; the use of I-shaped steel is equivalent to HN-shaped steel; The main materials of H-shaped steel are Q235B, SM490, SS400, Q345, Q345B, etc.

SIZE

H*B

KG/M

Product Name	H-beam / H-steel
Technical	Hot Rolled Molding
Materials	Q235B/Q235/Q345/G300/G350/SS400/S275JR/S355JR/S235JR/ASTM A63.
MOQ	25ton

SHANDONG LUBAO METAL GROUP CO., LTD. is an export company integrating steel production, processing and sales. Close to the northern coastal cities, convenient transportation, close to Qingdao Port, Tianjin Port and Shanghai Port, we have long-term and reliable cooperative relations with many shipping companies, and have great EXW, FOB, CIF price advantages.

Our goal is to develop long-term and reliable cooperative relations, and now we have long-term cooperative partners in Pakistan,Bangladesh, Israel, Ethiopia, Vietnam, Singapore, Brazil and other countries and have been widely recognized by customers. The company has a strong financial backing, can accept a large amount of sight irrevocable LC, and, guarantee the delivery time!

Do our best to meet all customer needs. Looking forward to doing business and making friends with customers all over the world!
